Home Machines Oil Extraction Cold Press Oil Machines
Oil Extraction
Cold Press Oil Machine
Also known as Cold Press Expeller, Cold Press Oil Extraction Machine, Cold Pressed Oil Machine, Kachi Ghani
Cold press oil machine manufacturer in Coimbatore, Tamil Nadu: three phase cold press expellers from 7.5 to 20 HP, 40 to 300 kg an hour, built at our own works and shipped, installed and serviced anywhere in India.
Made in Coimbatore, Tamil Nadu. Installed and serviced across India.
- Capacity
- 40 to 300 kg
- Motor
- 7.5 to 20 HP
- Phase
- Three
- Seeds
- Groundnut, Sesame, Coconut
- ISO 9001:2015
- Manufactured in Coimbatore
- across India
- From ₹1,90,000 + GST
1 Year Warranty
ISO 9001:2015 Certified Works
Shipping Across India
Choose Cold Press Oil Machine
A cold press oil machine from Coimbatore, Tamil Nadu, suits mills of every size, from 40 to 300 kg of seed an hour. Our works builds three phase screw expellers from 7.5 HP to 20 HP for groundnut, sesame and coconut mills. Presses from 7.5 to 15 HP carry an EN19 shaft, stainless steel 304 hopper and oil tray and a reverse forward switch. Our team at Perfect Engineerings ships, installs and commissions each machine across India, with spares and service from the same works. Every model carries a one year warranty on manufacturing defects, stated clearly on the quote.
Which Cold Press Oil Machine Fits
Daily seed quantity decides the right size, so start there. Here is how our team usually matches each press to a mill.
- 7.5 HP: small to mid scale processing, with low noise and vibration
- 10 HP: larger oil mills running continuous production
- 15 HP: high volume, heavy duty industrial processing
- 20 HP: up to 300 kg an hour, quoted per model
- Match capacity to your need, so you avoid paying for an oversized machine
Four Sizes Compared Side by Side
Putting every cold press oil machine size in one table makes the choice easier. Hourly capacity is 40 to 60 kg on the 7.5 HP, 100 to 150 kg on the 10 HP, 150 to 200 kg on the 15 HP and up to 300 kg on the 20 HP. Chamber length grows with each size, from 17.5 inches on the 7.5 HP to 30 inches on the 15 HP and ring count rises from 14 to 26. All of our expellers are three phase screw presses. Click a model name to open its specification sheet and request a quote.
| Model | Capacity Per Hour | Motor | Phase Type | Price |
|---|---|---|---|---|
| 7.5 HP - Three Phase Cold Press Oil Expeller | 40 to 60 kg | 7.5 HP - 960 RPM / 3 Phase (Crompton) | Three | ₹1,90,000 |
| 10 HP - Three Phase Cold Press Oil Expeller | 100 to 150 kg | 10 HP - 960 RPM / 3 Phase (Crompton) | Three | ₹2,60,000 |
| 15 HP - Three Phase Cold Press Oil Expeller | 150 to 200 kg | 15 HP - 960 RPM / 3 Phase (Crompton) | Three | ₹3,50,000 |
| 20 HP - Three Phase Cold Press Oil Expeller | Up to 300 kg | 20 HP - 3 Phase | Three | Quoted per model, within one working day |
Common Specification (7.5 to 15 HP)
| Detail | |
|---|---|
| Phase Type | Three |
| Main Shaft | EN19 grade hardened material |
| Hopper And Oil Tray | Stainless Steel 304 grade |
| Heater | Inbuilt tubular heater, 3 nos, 1000 W each |
| Reverse Gear | Inbuilt reverse-forward switch |
| Operation Type | Automatic |
| Pressing Method | Cold press, screw expeller |
| Usage | Edible oil, multi seed |
| Warranty | 1 Year |
| Brand | Perfect Engineerings |
| Country of Origin | India |
How the cold press expeller works
Feed and screw
Cleaned seed drops from the stainless steel 304 hopper into a barrel of rings (14, 17 or 26 rings on a 17.5, 22 or 30 inch chamber), where the screw on an EN19 hardened main shaft presses it against the rings.
Low heat, no chemicals
Oil is squeezed out through the ring gaps into the SS304 oil tray while the cake leaves the end of the barrel. Nothing is added and the seed is not roasted, so flavour and nutrients stay in the oil. Three 1000 W tubular heaters only warm the barrel for a cold start.
Drive and controls

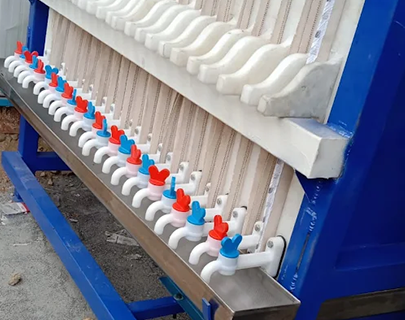

Crompton 960 rpm three phase motors of 7.5, 10 or 15 HP, with an inbuilt reverse-forward switch to clear a jam. Filter the pressed oil on the plate filter before bottling.
Cold Press Oil Machine Price
Our prices are listed openly so you can budget before calling us. Here is where each model stands today.
- 7.5 HP: ₹1,90,000 plus GST
- 10 HP: ₹2,60,000 plus GST
- 15 HP: ₹3,50,000 plus GST
- 20 HP: quoted per model within one working day
- Each price includes the motor, hopper, oil tray and heaters
Read our guide on what decides a cold press oil machine price.
Kachi Ghani Working Process
Many buyers know this press as a kachi ghani machine, because it squeezes seed without roasting or chemicals. Seed drops from the stainless steel hopper into a barrel of rings, where the screw on an EN19 shaft presses it against the ring gaps. Oil runs into the stainless steel tray while cake leaves the barrel. Nothing is added during pressing, which helps keep the natural flavour of the oil. Three 1000 W tubular heaters only warm the barrel for a cold start and the reverse forward switch helps clear a jam. Filter the oil on a plate filter before bottling.
Seed Yields From Our Test Runs
A cold press oil machine gives different yields on each seed, so the figures below come from our own test runs. Every seed on this page runs through the same expellers and what changes is the model you size for, the feed preparation and the yield. Actual figures vary with seed variety and moisture, so treat them as a guide and not a guarantee. Clean and dry seed gives the steadiest pressing. Groundnut, sesame and coconut each have their own notes below. Ask for a first run on your own seed during commissioning and our team will share the result.
Groundnut Cold Press Oil Machine
A groundnut cold press oil machine is the most common setup in Tamil Nadu, Andhra and Gujarat mills, where groundnut is also called peanut or moongfali. Groundnut is grown in Gujarat, Andhra Pradesh and Tamil Nadu. Our works’ own test runs give about 38 to 44% oil by weight on this press and the figure varies with seed variety and moisture. Pick the model by your daily seed quantity, from the 7.5 HP press to the 20 HP press. Ask our team for a first run on your own groundnut during commissioning, so you see the yield for your unit.
Sesame Cold Press Oil Machine
Gingelly oil for the South Indian table comes from a sesame cold press oil machine, where seed is pressed slowly at low heat for flavour. Sesame is also called til or gingelly and is grown in Tamil Nadu, West Bengal and Madhya Pradesh. Our works’ own test runs give about 30 to 36% oil by weight and the figure varies with seed variety and moisture. Heat only warms the barrel for a cold start, so pressing stays at low heat. Ask our team for a first run on your own sesame, so you see the yield for your own unit.
Coconut Cold Press Oil Machine
A coconut cold press oil machine presses dried copra, which is also called nariyal and grown in Tamil Nadu, Kerala and Karnataka. Cut the copra into pieces first on the copra cutter so the screw runs steady. Our works’ own test runs give about 50 to 60% oil by weight from copra and the figure varies with moisture and seed variety. Pair the press with a dehusker, cutter and dryer from our works for a complete coconut line. Ask our team for a first run on your own copra during commissioning so you see the yield for your own unit.
Rotary Press Versus Kachi Ghani Machine
Choosing a kachi ghani machine over a rotary press or a wooden marachekku press depends on your volume and budget. Our cold press expeller gives the highest output, at 40 to 300 kg an hour, for mills that want low heat oil. Rotary presses run at 20 to 60 kg an hour and suit coconut, groundnut and sesame mills. Our wooden press handles 10 to 30 kg an hour and suits home units and shops selling traditional oil. Compare the three presses in the table below, then ask our team which one best matches your daily seed quantity and budget.
| Press | Capacity | Motor | Phase | Price | Best for |
|---|---|---|---|---|---|
| Cold press expeller (this page) | 40 to 300 kg/hr | 7.5 to 20 HP | Three | ₹1,90,000 to ₹3,50,000 | Mills that want volume with low-heat oil |
| Rotary press | 20 to 60 kg/hr | 3 to 10 HP | Three / Single | ₹1,85,000 to ₹2,25,000 | Coconut, groundnut and sesame mills |
| Wooden press (marachekku) | 10 to 30 kg/hr | 2 to 5 HP | Three / Single | ₹1,20,000 to ₹2,30,000 | Home units and shops selling traditional oil |
Cold Press Manufacturers In India
Every press is designed and built in our own works at Vellakinar Pirivu, Coimbatore. These points set our works apart.
- ISO 9001:2015 certified works
- Founder Mr. Kuppusamy Velumani brings 25+ years of engineering experience
- 30+ machine models, with exports to multiple countries
- Direct from the manufacturer, with no third party dealers
- Our own technical service team with original spare parts
Cold Press Machine Support
Buying from a cold press oil machine manufacturer means the people who built your press stand behind it. Our team at Perfect Engineerings installs and commissions the machine at your site, runs it on your own seed and trains your operator the same day. Wear parts travel by courier from our Coimbatore works whenever needed and our team arranges service visits anywhere in India. Each model carries a one year warranty on manufacturing defects, stated on the quote, while motors keep their own maker warranty. Call our staff at any stage, from sizing to the first run at your mill.
What Our Customers Say
“Wonderful product quality and service. Great machines at very competitive prices.”
Neeraj Shopi, Customer
Site Needs Before Delivery Day
A ready site makes installation quick on delivery day. Run through this list with your electrician and builder.
- Three phase supply sized for the motor you choose
- Proper earthing at the machine point
- Frame space from 4 x 2 x 5 ft (7.5 HP) to 6 x 4 x 5 ft (15 HP), plus working area
- Level concrete floor under a covered shed
- Separate area for seed storage and oil filtering
- Our team at Perfect Engineerings will guide your layout and installation
Reviews
What customers say
Sugantha H
I purchased a cold pressed oil machine and overall had a very good experience. The team provided clear guidance during the purchase process and helped me choose the right machine for my needs.
pavithran k
I purchased cold pressed oil machine. I am satisfied with that product. Good customer service.
Mohd. Sharukh
Perfect Cold Press Machine is a good quality machine. Cooperative nature of all staff.
Aanjikya Shukla
Very happy with their services. The machine quality is outstanding. We have been using their machine for 3 years now and it is working smoothly. The Perfect Engineering team is always there to help whenever required. Definitely recommended.
TravelTime
Excellent experience from the time we consulted them, then buying the machinery and a very good demo session. What stands out is the customer service to answer our doubts anytime.
Cold Press Machine Buyer Questions
Are you a cold press oil machine manufacturer in Coimbatore?
Yes. Our works builds every cold press expeller at Vellakinar Pirivu, Coimbatore and our team ships and commissions it anywhere in India.
What is the price range of a cold press oil machine?
Listed prices run from ₹1,90,000 to ₹3,50,000 plus GST, ex-works Coimbatore and the 20 HP press is quoted per model.
Do you supply cold press oil machines outside Tamil Nadu?
Yes. Our team securely packs each machine at the Coimbatore works, then ships, installs and commissions it anywhere in India. Spares follow by courier and export orders go through the same works.
Do these machines use heaters?
Models from 7.5 to 15 HP carry three 1000 W tubular heaters, which only warm the barrel for a cold start. Pressing itself involves no roasting.
What warranty do the machines carry?
Each model carries a one year warranty on manufacturing defects, stated on the written quote. Motors keep their own maker warranty.
What does cold press oil machine service include?
Installation at your site includes a first run at rated capacity on your own seed, operator training on the same day and courier delivery of wear parts from Coimbatore.
What is the difference between cold press and traditional cold pressed?
Both mean pressing without roasting, so in principle there is no difference and the oil keeps its flavour. A traditional machine usually means the wooden ghani, while our steel cold press expeller does the same at higher throughput.
