Oil Extraction
Wooden Cold Press Oil Machine
Also known as Marachekku, Kachi Ghani, Lakdi Ghani, Wood Press Oil Machine, Wood Pressed Oil Machine, Wooden Oil Press Machine, Chekku Oil Machine, Traditional Oil Extraction Machine
Wood press oil machine, also sold as a wooden oil extraction machine: 10 kg per hour single phase for home use, 20 and 30 kg per hour for mills. Made in Coimbatore, Tamil Nadu; installed across India.
Made in Coimbatore, Tamil Nadu. Installed and serviced across India.
- Capacity
- 10 to 30 kg / hr0.24 to 0.72 t/day
- Motor
- 2 to 5 HP
- Phase
- Single / Three
- Seeds
- Groundnut, Sesame, Coconut
For home and small units: 10 Kg/Hr 2 HP, single / three phase. See all models · All machines for home
- ISO 9001:2015
- Manufactured in Coimbatore
- across India
- From ₹1,20,000 + GST
1 Year Warranty
ISO 9001:2015 Certified Works
Shipping Across India
Wooden Cold Press Oil Machine
See our wooden cold press oil machine, marachekku oil machine, wood pressed oil machine and wooden ghani machine models, built by Perfect Engineerings in Coimbatore. We make wooden presses at 10, 20 and 30 kg an hour, with single phase and three phase versions at 10 and 20 kg. Each press crushes groundnut, sesame or coconut copra slowly in a wooden mortar, so the oil keeps its flavour. Stainless steel 304 forms the hopper and oil tray. We ship across India, commission the press on your site and train your operator on the same day. Starting price: ₹1,20,000 plus GST.
Best Wooden Cold Press Oil Machine
We build wooden presses for three kinds of buyer, from a single household to a busy mill. Here is how each size is used.
- 10 kg an hour: homes, startups and small farms
- 20 kg an hour: small oil businesses, farms and shops selling oil
- 30 kg an hour (Jumbo): oil mills and large units
- 10 and 20 kg: single phase or three phase to suit your supply
- Seeds: groundnut, sesame and coconut copra
Models Compared by Capacity and Phase
Compare capacity and phase together to choose a size. The 10 kg an hour press has a 2 HP motor and starts at ₹1,20,000. The 20 kg an hour press comes as a 4 HP single phase or a 3 HP three phase and starts at ₹1,70,000. The small difference between the phases is confirmed in your quote. The Jumbo 30 kg an hour press has a 5 HP three phase motor at ₹2,30,000 and is the mill size. All models use Siemens motors at 960 rpm. Tell us your supply and daily seed quantity and we will recommend one.
| Model | Capacity | Motor Power | Phase Type | Price | Quote |
|---|---|---|---|---|---|
| 10 Kg/Hr 2 HP | 10 kg / hr (0.24 t/day) | 2 HP | Single / Three | From ₹1,20,000 | Quote this model |
| 20 Kg/Hr 3 HP | 20 kg / hr (0.48 t/day) | 4 HP single, 3 HP three | Single / Three | From ₹1,70,000 | Quote this model |
| 30 Kg/Hr | 30 kg / hr (0.72 t/day) | 5 HP | Three | ₹2,30,000 | Quote this model |
Common Specification
| Detail | |
|---|---|
| Pressing Method | Cold press, wooden ghani |
| Operation Type | Automatic |
| Main Shaft | EN19 grade hardened material |
| Motor Brand | Siemens |
| Speed | 960 RPM |
| Hopper And Oil Tray | Stainless Steel 304 |
| Seeds | Groundnut, Sesame, Coconut |
| Usage | Edible oil, multi seed |
| Brand | Perfect Engineerings |
| Country of Origin | India |
Marachekku Oil Machine Models
Our wooden range has three sizes and the 10 and 20 kg sizes come in two phases. Here is each model by capacity and motor.
- 10 kg/hr, 2 HP: single phase or three phase
- 20 kg/hr: 4 HP single phase or 3 HP three phase
- 30 kg/hr Jumbo: 5 HP, three phase only
- Output from 0.24 to 0.72 tonnes a day
- Written quote within one working day

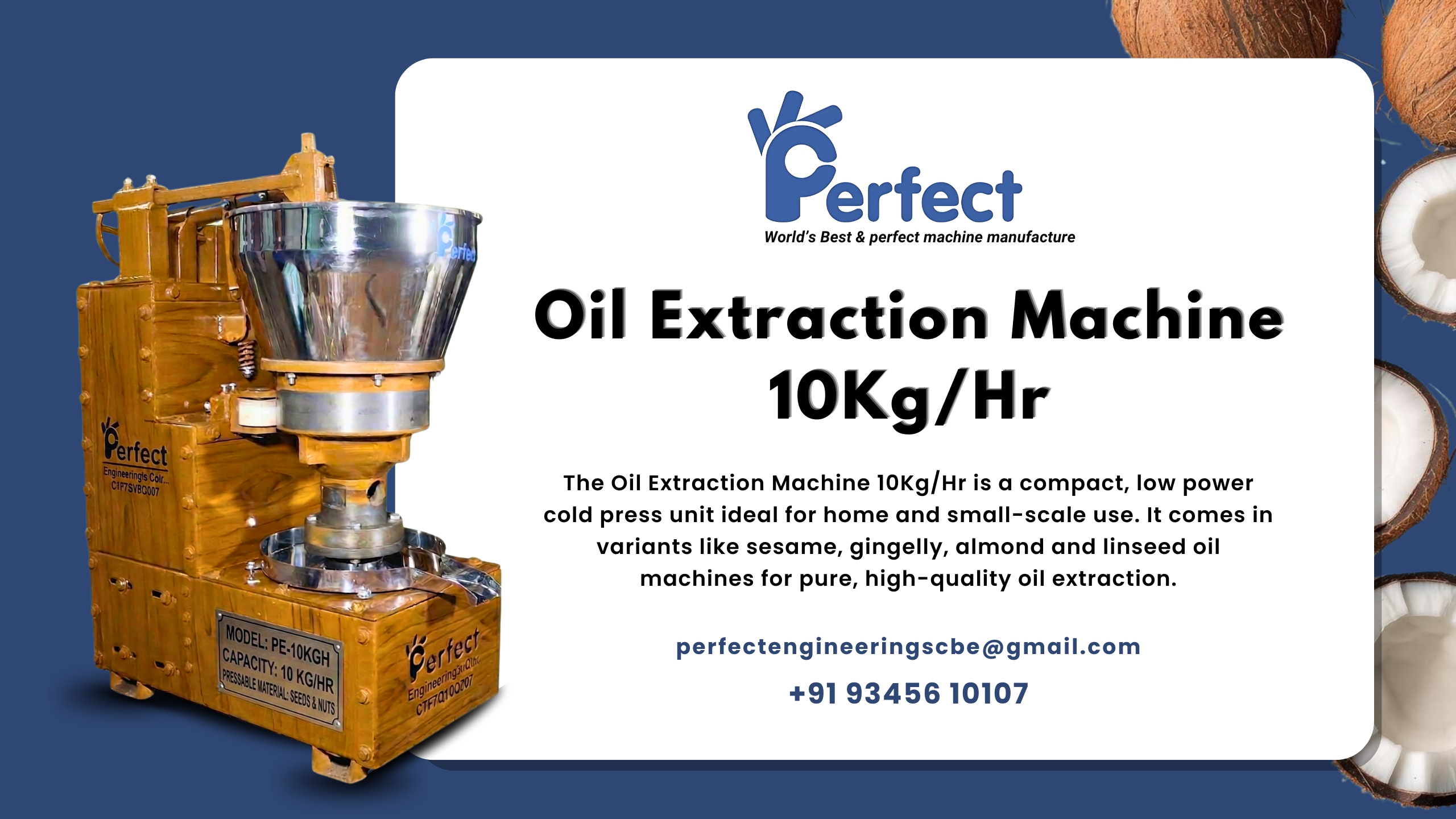

Marachekku Oil Machine for Home
A marachekku oil machine for home means the 10 kg an hour model. Its 2 HP single phase version runs on the same 230 V supply as a household water pump, stands 3 by 1.5 feet and presses 10 kg of groundnut or sesame in about an hour. If your unit has three phase power, the 2 HP three phase version gives the same output for a little more money. Both are quiet enough for a house or shop front and the wooden pestle and stainless steel hopper wipe clean between seeds. Our team will help you check your supply.

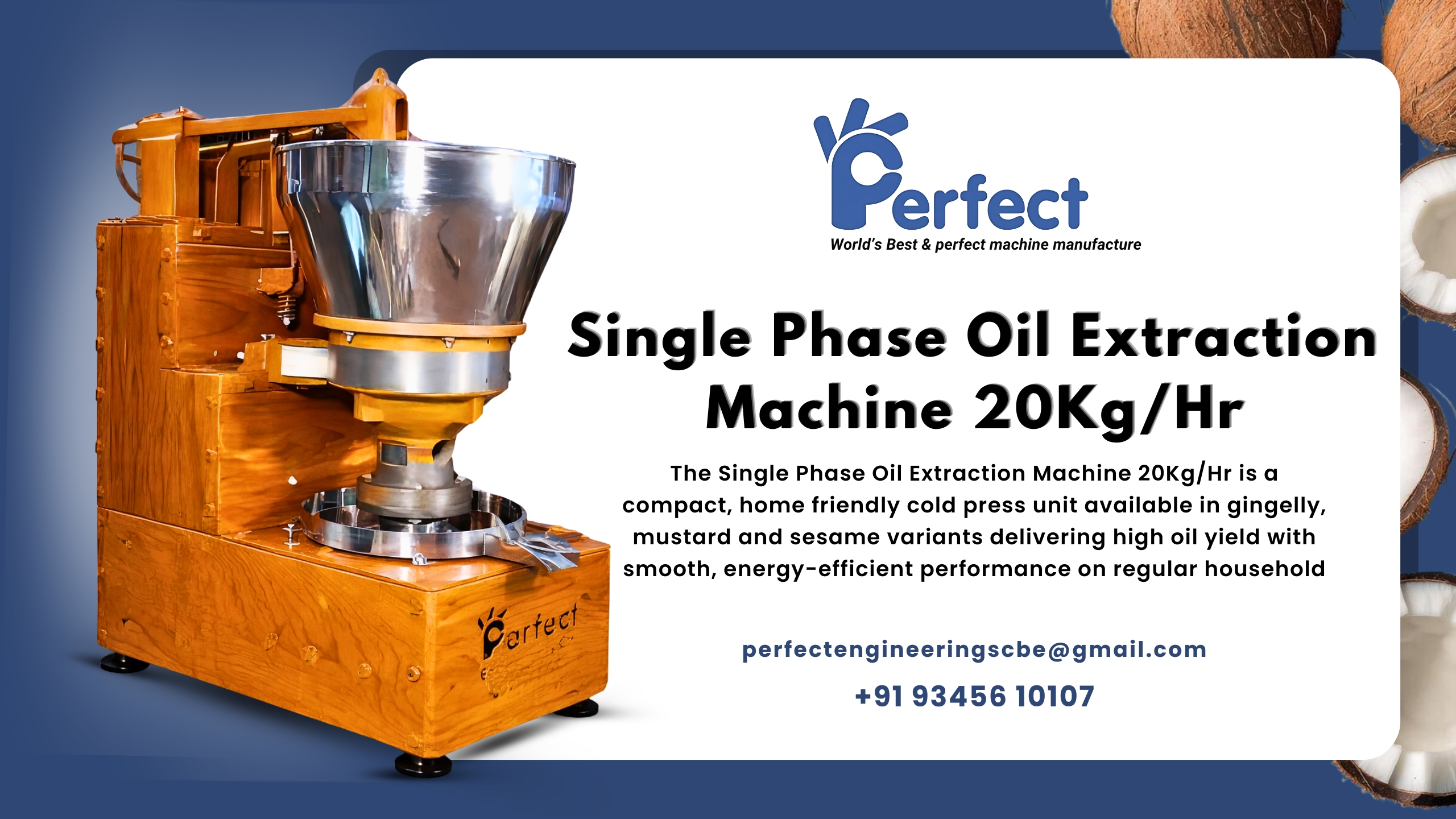

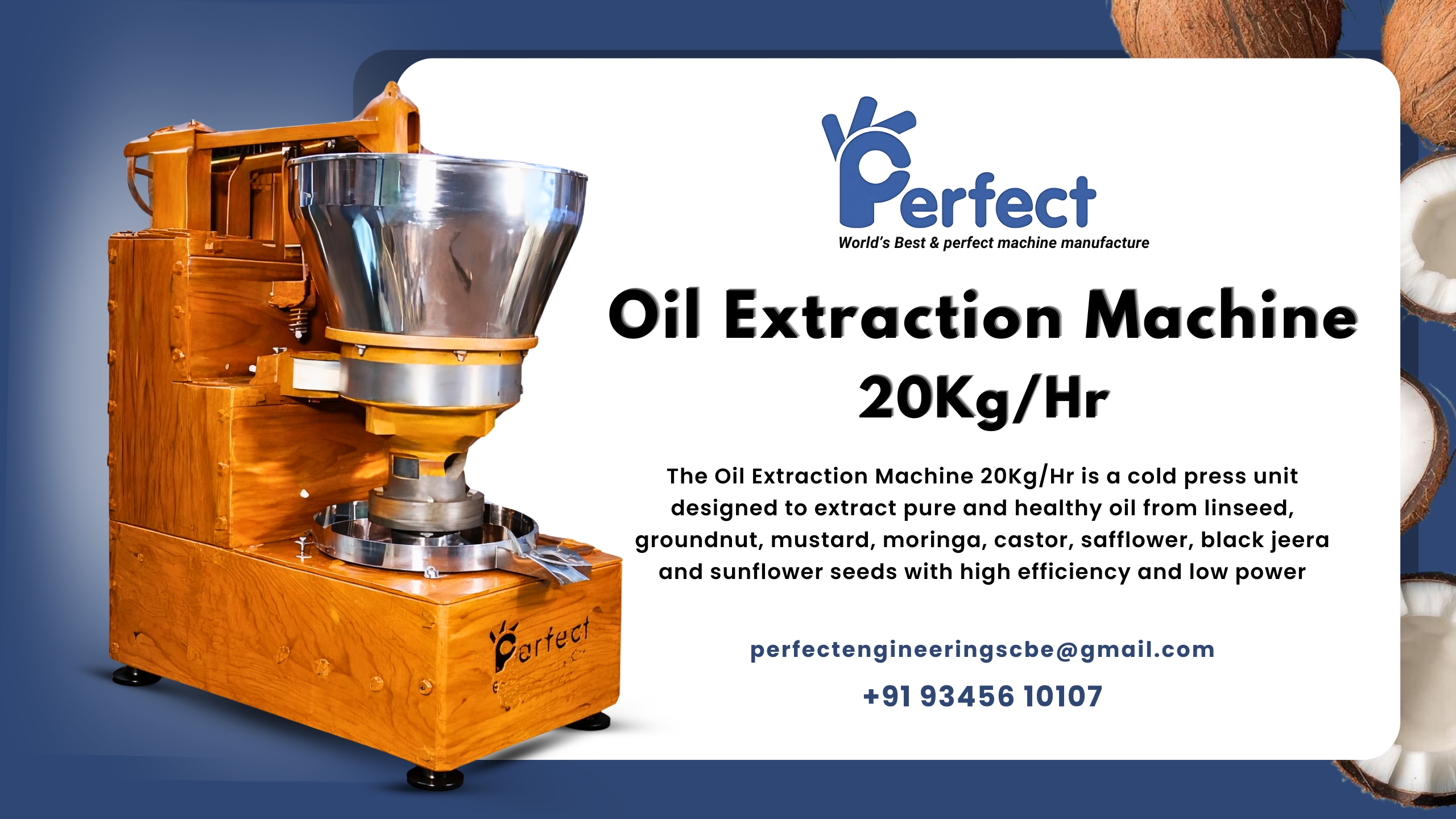

20 kg Single and Three Phase
The 20 kg press comes in two versions that share the same frame. Here is how they differ.
- Single phase: 4 HP motor, runs on standard household electricity
- Three phase: 3 HP motor, built for continuous commercial loads
- Both: 20 kg an hour, 0.48 tonnes a day on a 24 hour run
- Both: 4 x 2 x 4.5 ft frame, EN19 shaft, 960 rpm
- Single phase suits small businesses and farms with limited power access
- Three phase gives high torque and runs long hours without overheating
Wood Pressed Oil Machine Working
A wood pressed oil machine turns the old bullock driven chekku into an electric one. Feed goes into a wooden mortar, the ural and a Vagai wood pestle, the ulakai, rotates slowly against it. That slow crushing keeps the seed cool, so the oil holds its flavour, colour and nutrients and nothing is added. The oil drains into a stainless steel tray, while the cake stays in the mortar until you lift it out. Operation is fully automatic. A Siemens motor at 960 rpm drives the pestle through a reduction and imported bearings keep the noise and vibration very low.
Wood Pressed Oil Machine Materials
The wood and steel in this press are chosen for the work each part does. Here is what each part is made of.
- Pestle (ulakai): Vagai wood
- Mortar (ural): wood, with wood or stone on the 30 kg model
- Main shaft: EN19 grade hardened material
- Axle on the 30 kg model: EN8 grade, 100 mm, hardened
- Hopper and oil tray: stainless steel 304
- Drive: Siemens motor, 960 rpm, imported bearings
Jumbo 30 kg Mill Model
Perfect Engineerings builds the Jumbo 30 kg an hour press for mills that want maximum throughput without moving to a steel expeller. A 5 HP three phase motor drives a larger frame of 5 by 2.5 by 7 feet and a hardened EN8 axle of 100 mm diameter carries the whole load. The wooden chamber is retained, so the oil keeps its natural taste and nutrients under heavy, continuous daily loads. At 0.72 tonnes a day on a 24 hour run, it gives the highest output in our whole wooden range. We list it at ₹2,30,000 ex-works Coimbatore plus GST.
Wooden Ghani Machine Price
We list our starting prices openly, ex-works Coimbatore plus GST. Here is each model at a glance.
- 10 kg/hr, 2 HP: from ₹1,20,000
- 20 kg/hr: from ₹1,70,000
- 30 kg/hr Jumbo, 5 HP, three phase: ₹2,30,000
- Phase price confirmed when we speak
- Perfect Engineerings quotes freight and installation with the machine
Wooden Ghani Machine Price Details
Our wooden ghani machine price starts at ₹1,20,000 for the 10 kg press and reaches ₹2,30,000 for the 30 kg Jumbo. The 20 kg press starts at ₹1,70,000. Each figure is ex-works Coimbatore plus GST and freight and installation anywhere in India are added to your quote. The 10 kg and 20 kg presses come in single phase and three phase and we confirm the exact figure for your supply when we speak. The Jumbo gives our range top output. Share your seed type, daily quantity and power supply and our team returns a written quote within one working day.
Oil Output Per Hour by Seed
Oil output depends on the seed, so we show it per hour for each size. These figures come from our test-run yields at full rating.
- Groundnut: about 3.8 to 4.4 kg of oil an hour on the 10 kg press
- Sesame: about 3 to 3.6 kg of oil an hour on the 10 kg press
- Coconut copra: about 5 to 6 kg of oil an hour on the 10 kg press
- The 20 kg press gives double these figures
- The Jumbo gives three times these figures
- Cut copra first on a copra cutter
Reviews
What customers say
Deepak D Ramalingam
I've been using this 20kg wooden oil extraction machine for 1.5 years and it's been working perfectly. The customer service is quite approachable and I wish you all the best in your future endeavors.
BS Unnithan
Been using this oil extraction marachekku machine (20Kg) for the past two years. As the name suggests it's been working perfectly fine. The company as such is very responsive to all our queries.
Pavan Kumar
Thank you for the prompt service during my recent purchase of the wooden press machine, is of a superior quality product. The team was knowledgeable and went above and beyond to ensure I found the right product.
Yash Bhatt
Great experience, we got this machine from Gujarat. Very fast delivery, very good rate, very good accurate work. As per the name, yes it's perfect.
rahul shah
I had a great experience working with Perfect Engineering and Geetha Madam during my machine purchase. They were extremely professional, transparent and supportive throughout the entire process.
Frequently asked questions
Is there a wooden cold press oil machine for home?
Yes. Our 10 kg an hour press with a 2 HP single phase motor runs on a normal household supply and is the model most home buyers choose.
What does a home unit need?
A covered space of about 4 by 3 feet, one 15 A socket and dry seed. Keep water away from the wooden drum, clean after every use and store the press in a dry place.
Do the 10 kg and 20 kg presses come in both phases?
Yes. The 10 kg press is a 2 HP in single phase or three phase. The 20 kg press is a 4 HP single phase or a 3 HP three phase.
How is a wooden press different from a steel cold press expeller?
Both press seed without heat. The wooden press crushes slowly in a wooden mortar and suits homes, shops and small mills, while our steel expeller does the same job at higher throughput. See our cold press oil machines.
Which seeds can a marachekku machine press?
Groundnut, sesame and coconut copra.
What is the price of a wooden ghani machine?
It starts at ₹1,20,000 for the 10 kg press and reaches ₹2,30,000 for the 30 kg Jumbo, ex-works Coimbatore plus GST.
Which wood is the chekku made of?
The pestle (ulakai) is Vagai wood and the mortar is wood or wood or stone on the 30 kg model. The hopper and oil tray are stainless steel 304.
How much oil does the 10 kg press give in an hour?
About 3.8 to 4.4 kg of groundnut oil, 3 to 3.6 kg of sesame oil or 5 to 6 kg of coconut oil, depending on variety and moisture.
