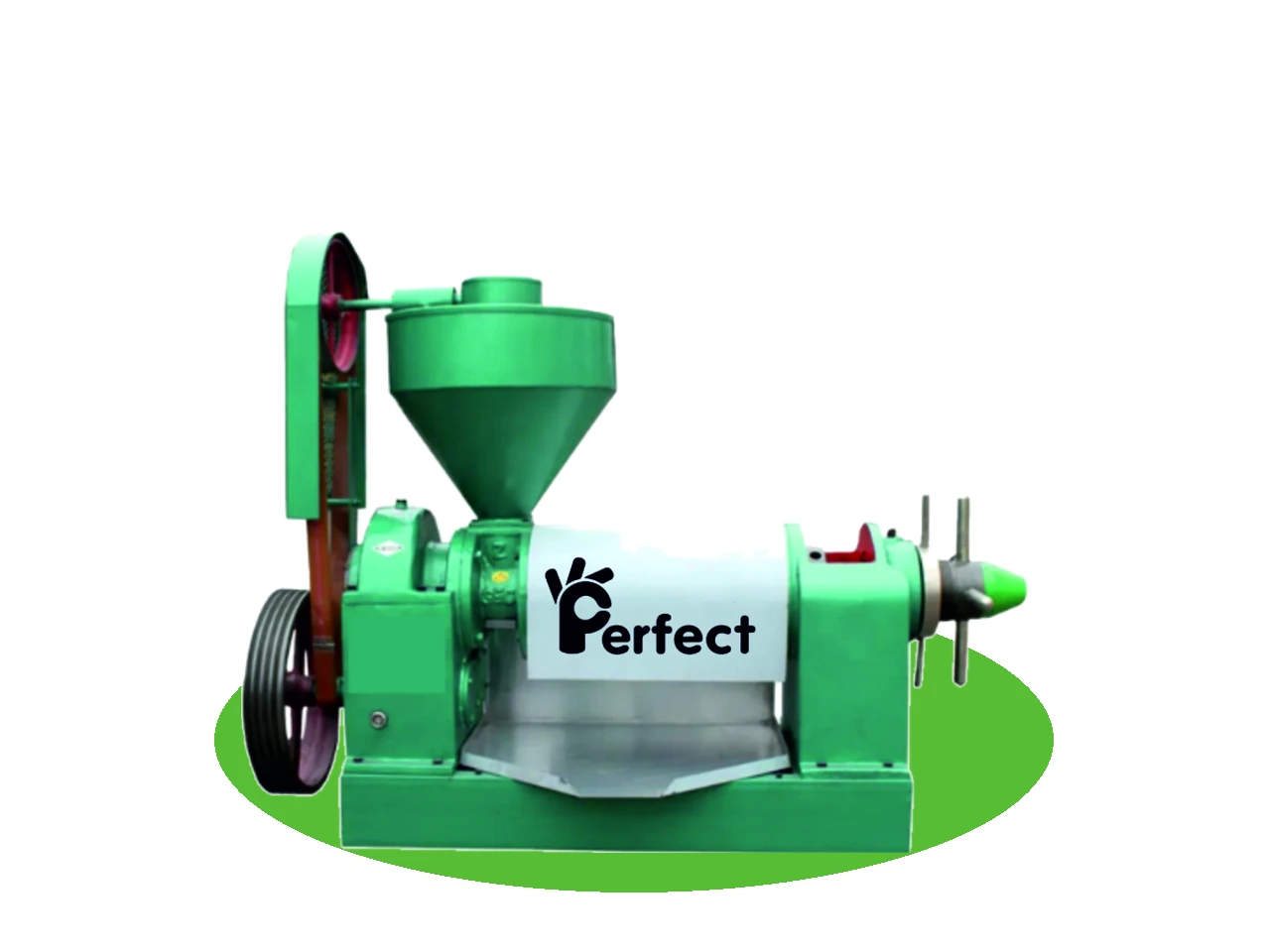

15 HP Three Phase Cold Press Oil Expeller

15 HP Cold Press Oil Expeller

This press sits above the 10 HP and below the 20 HP in our range. Here is who it suits.

• Mills wanting 150 to 200 kg of seed an hour
• Groundnut, copra and sunflower mills
• Crompton 15 HP motor at 960 rpm, three phase
• Reverse forward switch and three heaters built in
• One year warranty on every press

Inside the 30 Inch Chamber

A bigger press earns its output in the barrel, so look there first. The chamber is 30 inches long and holds 26 rings, each with a 110 mm bore and a 160 mm outer diameter and a hardened EN19 grade shaft turns through them. Three tubular heaters of 1000 W each sit inside the unit and a reverse forward switch controls shaft direction. The frame measures 6 by 4 by 5 feet, so plan the floor space before you order. Our staff send spares from the Coimbatore factory on request and every figure appears in the sheet below for comparison.

Sunflower Oil Press Machine Output

A sunflower oil press machine should keep pace with the seed you bring in each day. At 150 to 200 kg an hour, this press handles roughly 1,200 to 1,600 kg in an eight hour shift at the stated rating. The same barrel takes copra and groundnut, so you can change crops without changing machines. Oil yield depends on the seed, its moisture and how evenly you feed it, so ask us for a figure on your own seed. Share your daily quantity and shift pattern with our team and we will tell you whether 15 HP matches your mill.

Running It With the Filter Press

This press is usually run with a 500 litre filter press. Here is how the two fit together.

• The press sends oil into the stainless steel tray
• The filter press clears the oil before bottling
• A 500 litre filter press is the usual partner for this size
• Ask our team to quote the pair together
• One works builds, ships and services both

Copra Oil Press Machine Seed Notes

This press takes more than one seed, so a mill can follow the season. Here is what the barrel is set up for.

• Copra, sunflower and groundnut on one press
• Tell us your main seed so we can plan the setup
• Seed moisture affects oil yield, so ask for a figure on your seed
• Clean, dry seed protects the shaft

Moving Up From the 10 HP

Perfect Engineerings builds four cold press sizes, so you can see what 15 HP adds. Compared with our 10 HP press, this model handles 150 to 200 kg an hour instead of 100 to 150 kg, on a larger frame of 6 by 4 by 5 feet, with a 30 inch chamber and 26 rings instead of 22 inches and 17 rings. If you need more than 200 kg an hour our 20 HP press reaches up to 300 kg. Click a model below for its full datasheet or tell us your daily seed volume and we will advise you.

15 HP Cold Press Machine Price

Our 15 HP cold press machine price is ₹3,50,000 ex-works Coimbatore, plus GST. That is ₹90,000 more than the 10 HP press and it buys an extra 50 kg an hour of capacity. Freight to your district and installation at your site are quoted with the machine, on separate lines, so you can compare our offer with any other. Our 20 HP press, rated up to 300 kg an hour, is priced per model. Send your seed type and power supply by form or WhatsApp and our team will call you and send a written quote within one working day.

Shed Layout and Power Checklist

A heavier press needs a firmer start, so prepare these points before delivery. Check them with your electrician and builder.

• Three phase supply sized for a 15 HP motor
• Proper earthing at the machine point
• Room beyond the 6 x 4 x 5 ft frame for feeding and cake removal
• Level concrete floor under a covered roof
• Space for the filter press near the machine
• Perfect Engineerings will plan your layout with you
