Home Machines Oil Extraction Oil Expeller Machine
Oil Extraction
Oil Expeller Machine
Also known as Bolt Expeller, Oil Expeller Machinery, Screw Press, Sarson Tel Machine
Oil expeller machine: bolt-type screw press for mustard, groundnut, sesame and sunflower, in 3, 4 and 6 bolt models. Built in Coimbatore, Tamil Nadu; supplied to mills across India.
Made in Coimbatore, Tamil Nadu. Installed and serviced across India.
- Capacity
- 50 to 100 kg / hr2.4 t/day
- Motor
- 5 to 10 HP
- Phase
- Three
- Seeds
- Groundnut, Mustard, Sesame+3 more
- ISO 9001:2015
- Manufactured in Coimbatore
- across India
1 Year Warranty
ISO 9001:2015 Certified Works
Shipping Across India
Oil Expeller Machine Overview
Businesses that want steady, high volume pressing choose an oil expeller machine built around a bolted screw barrel. A hardened steel worm drives seed along the barrel, pressure rises toward the end and oil is squeezed out through the gaps between the bars. The cake leaves the barrel dry and sells as khal for cattle feed. Perfect Engineerings builds this bolt expeller in 3, 4 and 6 bolt barrels, with 50 to 100 kg per hour output and 5 to 10 HP motors, for mustard, groundnut, sesame, sunflower, coconut and soybean mills. Our team installs each unit on your site.
Oil Expeller Machine Capacity Guide
Pick the right barrel size by daily seed tonnage. Capacity runs from 50 to 100 kg per hour.
- 3 bolt barrel, for small mills starting out.
- 4 bolt barrel, between the small and large sizes.
- 6 bolt barrel, for continuous mustard or groundnut crushing.
- Up to 0.8 tonnes of seed per eight hour shift.
- Three phase motors from 5 to 10 HP.
- Tell us your daily tonnage and seed and we will size the bolt model.
Bolt Expeller Models and Motor Sizes
All bolt models fall within 50 to 100 kg/hr and 5 to 10 HP. Exact capacity and motor rating are confirmed in your written quote.
| Barrel | Best for | Phase | Price (+ GST, ex-works) | Quote |
|---|---|---|---|---|
| 3 bolt | Small mills | Three | Quoted per model | Quote this model |
| 4 bolt | Between small and large mills | Three | Quoted per model | Quote this model |
| 6 bolt | Continuous mustard or groundnut crushing | Three | Quoted per model | Quote this model |
Oil Expeller Machine Price
Buyers comparing the oil expeller machine price should first check what each quote covers. We price every bolt model individually, because the barrel size, motor rating and seed you plan to press all change the build. A written quote follows within one working day, listed ex-works Coimbatore plus GST, with freight to your district shown as a separate line. Share your daily tonnage and seed with our team, so the quote matches your unit. Ask for each extra, such as a cake shredder or filter press, as its own line, so you can compare offers fairly with any other supplier.
Oil Expeller Machine Price Factors
| Factor | How it changes the quote |
|---|---|
| Barrel size | 3, 4 or 6 bolt, sized to daily tonnage |
| Motor rating | 5 to 10 HP, three phase |
| Seed | Mustard, groundnut, sesame, sunflower, coconut or soybean |
| Freight | To your district, shown as a separate line |
| GST | Added to the ex-works price |
| Extras | Cake shredder, filter press, copra cutter, quoted as separate lines |
Quote Freight and Installation Steps
A written oil expeller machine price quote takes one working day. Freight to your district is shown separately.
- Share your seed, daily tonnage, power supply and district.
- Receive a written quote within one working day.
- Confirm the bolt model and extras like a cake shredder.
- We ship the machine from our works to your district.
- Our team installs it and runs it on your own seed.
- Your operator is trained on the same day.
Bolt Oil Expeller Machine India

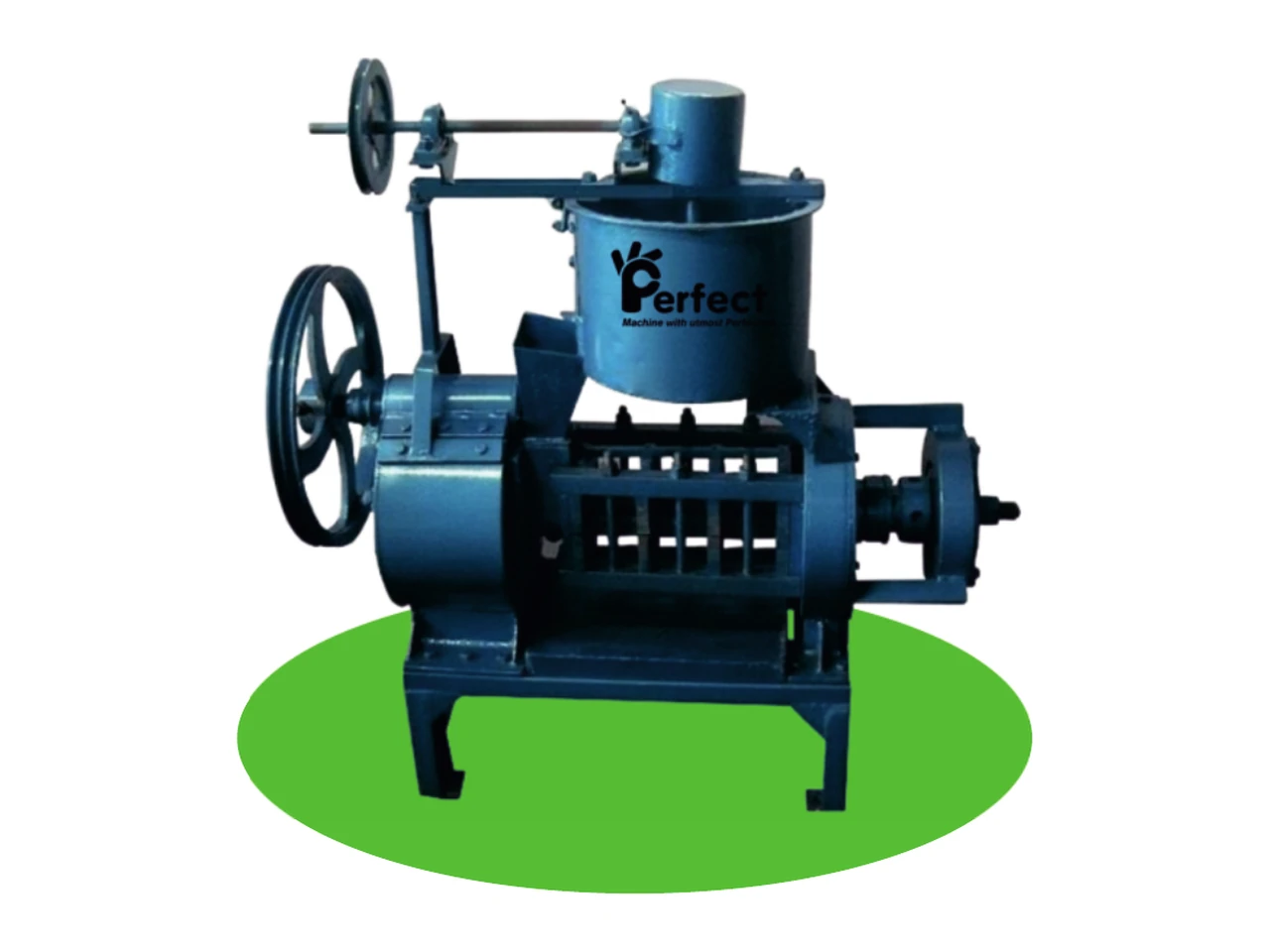

Many mills know the bolt oil expeller machine as a screw press, bolt expeller or sarson tel machine. Its barrel is built from bars held by bolts and the count of 3, 4 or 6 bolts reflects barrel length and capacity. Seed is fed in and the worm carries it forward, building pressure until the oil escapes between the bars into a stainless steel tray. The dry cake exits at the barrel end. Built at our Coimbatore works and shipped across India, it is the standard mustard press in Uttar Pradesh, Rajasthan, Madhya Pradesh and Haryana for kachi ghani oil.
Seed Guide for Bolt Expellers
| Seed | Also called | Grown in | Notes |
|---|---|---|---|
| Mustard | Sarson, rai | UP, Rajasthan, MP, Haryana | Standard press for kachi ghani mustard oil |
| Groundnut | Peanut, moongfali | Gujarat, AP, TN | Run at mill volumes |
| Sesame | Til, gingelly | TN, WB, MP | Gingelly oil for South Indian mills |
| Sunflower | Surajmukhi | Karnataka, Maharashtra | Pressed as de-hulled seed |
| Coconut | Copra, nariyal | TN, Kerala, Karnataka | Copra is cut first on the copra cutter |
| Soybean | Soya | MP, Maharashtra | Expeller pressed soya |
Bolt Oil Expeller Machine Key Features
These are the parts that carry the load in every bolt oil expeller machine we build. Check each one before ordering.
- Hardened steel worm assembly that drives the seed.
- Bolted barrel of 3, 4 or 6 bolts.
- Heavy duty gearbox with a branded motor.
- Stainless steel oil tray under the barrel.
- Dry cake exit, sold as khal for cattle.
- Cake shredder to break the cake for feed.
- Worm and bars are wear parts shipped from our works.
Oil Expeller Machine Manufacturer
As an oil expeller machine manufacturer, Perfect Engineerings designs, builds, ships and services every unit from one works. Our founder, Mr. Kuppusamy Velumani, brings 25 years of engineering experience and the works operates under an ISO 9001:2015 certified system. The same team commissions the machine at your site and supplies the worm and bars later, so service questions reach the people who built it. Each press leaves the works with hardened worm assemblies, heavy duty gearboxes and stainless steel oil trays. You can verify our company profiles on IndiaMART and TradeIndia before you order or call our sales team directly.
Oil Expeller Machine Manufacturer Specs
| Specification | Details |
|---|---|
| Capacity | 50 to 100 kg/hr (2.4 t/day on a 24 h basis, 0.8 t per 8 hour shift) |
| Motor Power | 5 to 10 HP |
| Phase Type | Three |
| Dimension in ft. (L x B x H) | 6 x 4 x 5 |
| Barrel | 3, 4 or 6 bolt, sized to the daily tonnage |
| Usage | Mustard, groundnut, sesame, sunflower, coconut, soybean |
| Pressing Method | Cold press, screw expeller |
| Brand | Perfect Engineerings |
| Country of Origin | India |
| Price | Quoted per model, ex-works Coimbatore + GST |
Service and Spares Across India
After purchase, support stays with the oil expeller machine manufacturer that built it. Questions are answered before you order too.
- Installation at your site, run at rated output on your own seed.
- Operator training on the same day.
- Worm and bars shipped by courier from Coimbatore.
- Warranty period stated on your written quote.
- Branded motors carry their own maker warranty.
- Service calls answered by the team that built the machine.
- Call +91 93456 10107, Monday to Saturday.
Reviews
What customers say
Durai Raj
I had purchased recently oil expeller 10hp 100kg capacity per hour from Perfect Engineering. He suggested me the right machine, I am so happy with the machine and quality and performance for groundnuts.
Pranshul Pal
Great Machine, great staff and very helpful! Always recommend if you are looking for any oil expeller or oil filter!
DINESH KUMAR.R
I had a very good experience purchasing this oil machine. The machine quality is excellent and its performance is very good. The company team was also supportive and responsive throughout the process. Highly recommended!
Pawan Jha
Excellent service and very good quality machine. The team is professional, supportive and knowledgeable. They explained everything clearly and provided excellent guidance throughout the process. Highly recommended!
Jitendra Kumar Gupta
Best quality product. Service is also good. Highly recommended.
Oil Expeller Machine FAQs
What is a bolt oil expeller?
A bolt oil expeller is a screw press whose barrel is built from bars held by bolts. A rotating worm feeds seed along the barrel, pressure rises and oil is pressed out between the bars. The cake leaves dry at the end. The bolt count refers to barrel size and capacity.
Which oil expeller is best for mustard?
The bolt expeller is the standard mustard press across North India, used for kachi ghani oil. Tell Perfect Engineerings your daily tonnage and the works will size the bolt model. A 6 bolt barrel suits continuous mustard crushing, while smaller barrels suit small mills.
What is the difference between 3, 4 and 6 bolt expellers?
The bolt count is the number of bolts holding the barrel bars and it sets barrel length and capacity. A 3 bolt press suits small mills, a 4 bolt press sits in between and a 6 bolt press suits continuous mustard or groundnut crushing.
What is the price of a bolt oil expeller?
Perfect Engineerings quotes each bolt model individually, because barrel size, motor rating and seed change the build. A written quote follows within one working day, ex-works Coimbatore plus GST, with freight to your district shown as a separate line. Share your daily tonnage and seed to start.
Expeller or rotary press, which fits my mill?

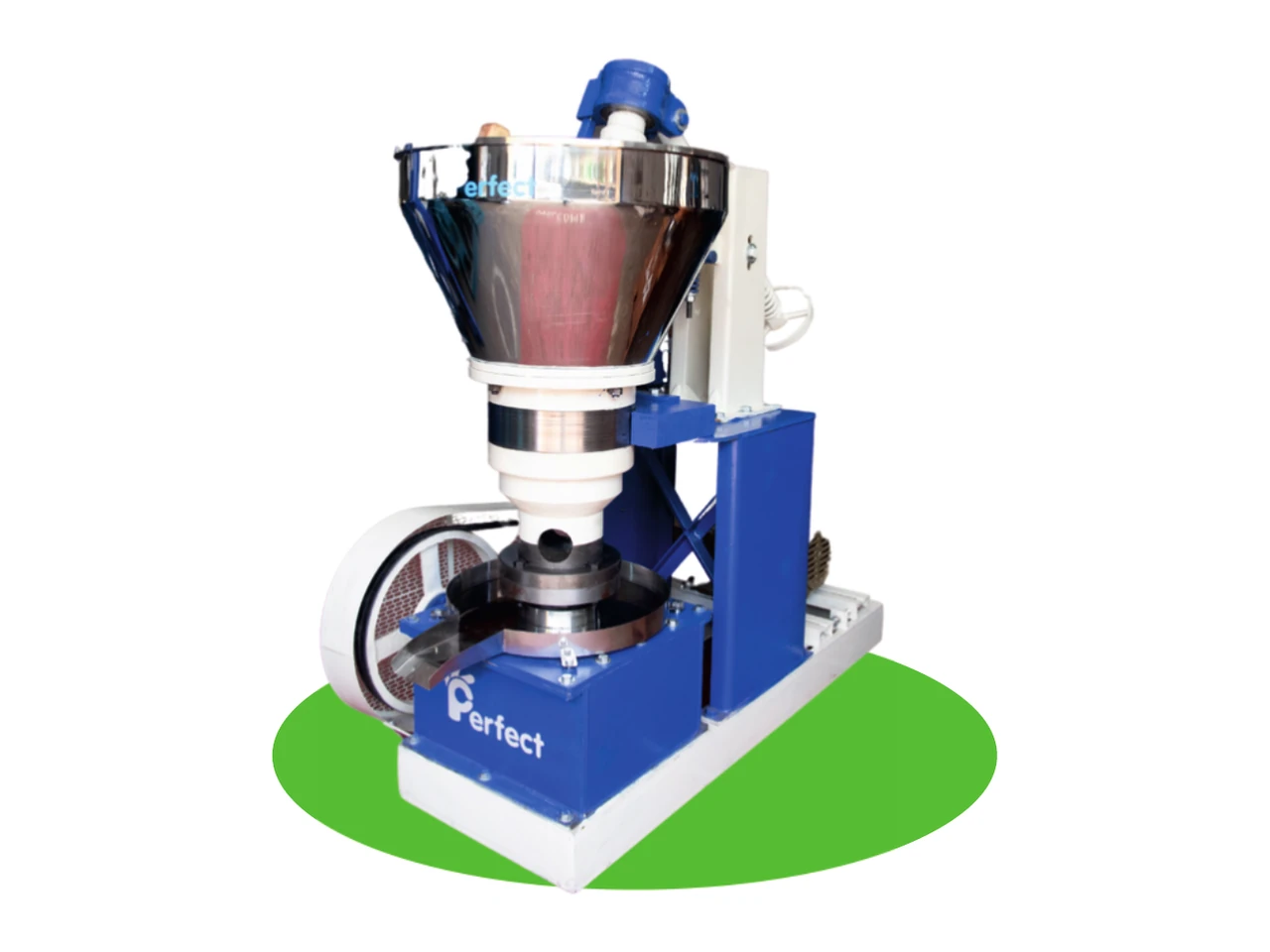

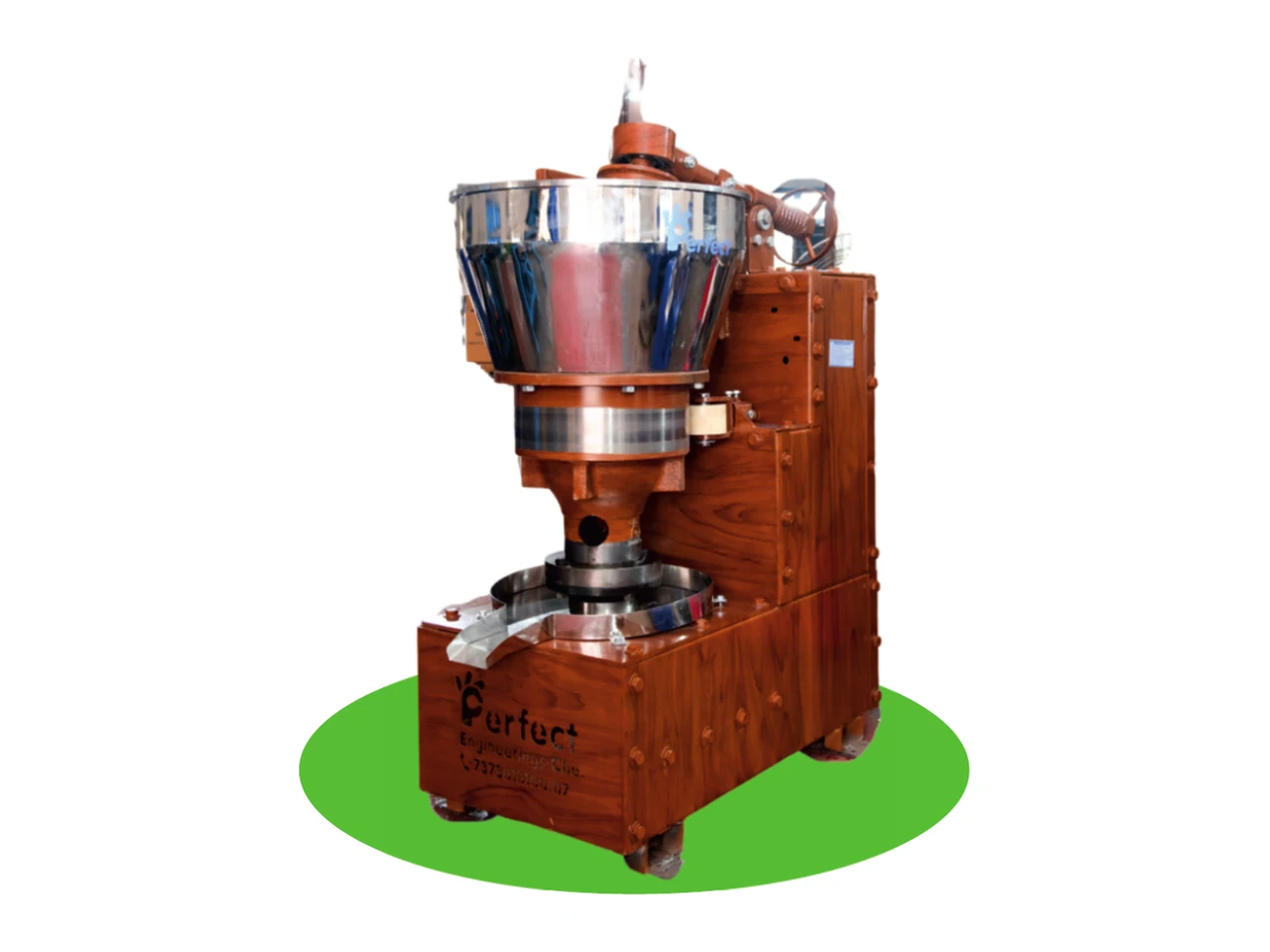

It depends on throughput. The bolt expeller runs 50 to 100 kg per hour, while the rotary press runs 20 to 60 kg per hour and the wooden press runs lower. Share your daily seed target and our team will tell you which fits your unit.
Who installs and services the machine?
The works that built the machine installs it at your site, runs it at rated output on your own seed and trains your operator on the same day. The worm and bars are wear parts that ship by courier from Coimbatore and the warranty period is stated on your written quote.
