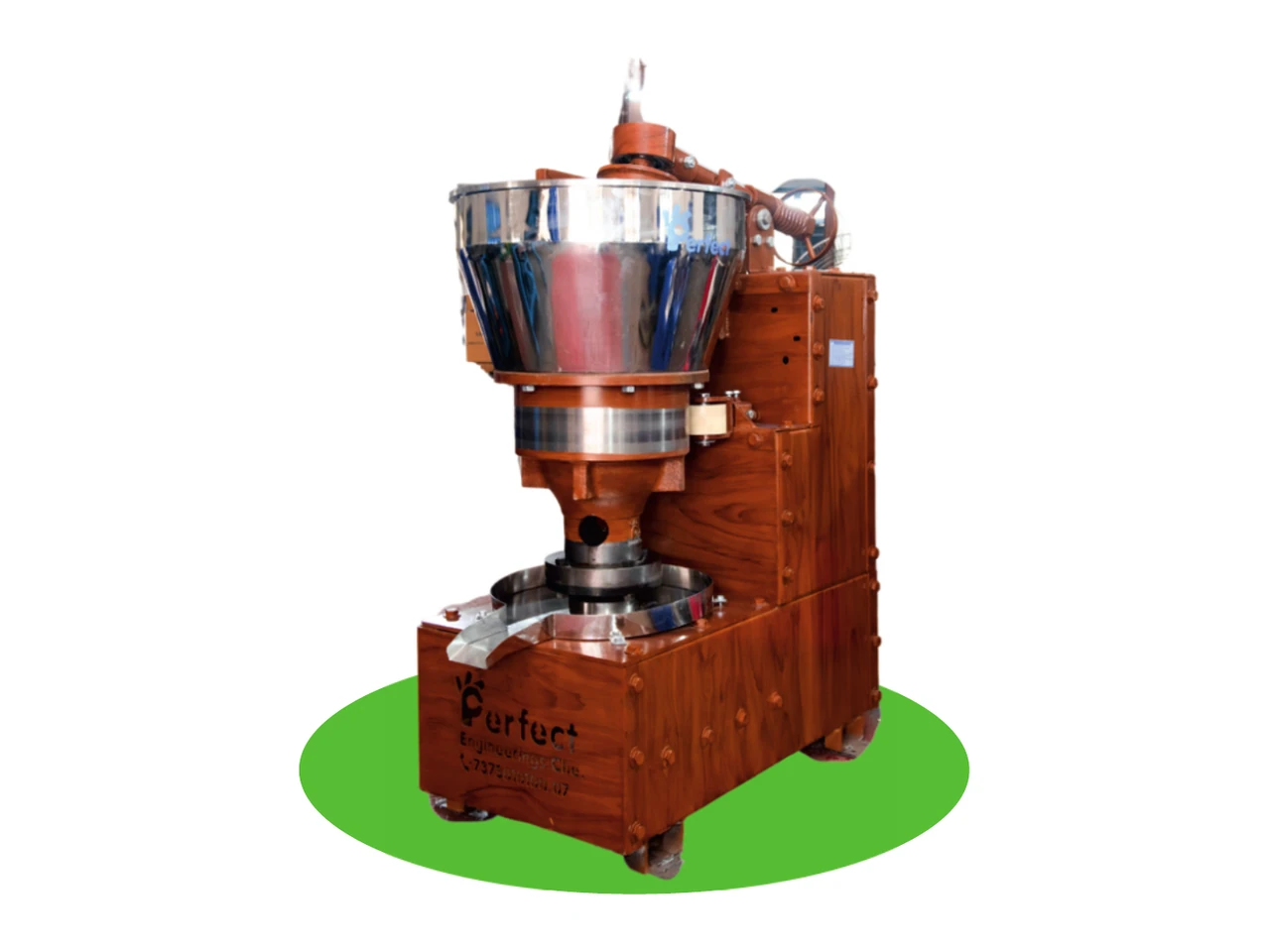

20 Kg Wooden Oil Machine, 3 HP

Best 20 kg Wooden Oil Machine

This press is the middle size in our wooden range, between the home model and the mill model. Here is what to know first.

• Presses 20 kg of seed an hour
• About 160 kg of seed in an eight hour shift
• 3 HP three phase or 4 HP single phase
• Starts at ₹1,70,000 plus GST
• Made at our Coimbatore works and dispatched across India

Daily Output of the 20 kg Press

Plan your day around batches and shifts. At 20 kg of seed an hour, the press handles about 160 kg in an eight hour shift and about 480 kg on a 24 hour run. The oil you bottle is less than that, because it depends on the seed, how dry it is and how well you clean it, so ask us for a yield figure on your own seed. Tell our team your daily seed quantity and shift pattern and we will say whether one 20 kg press is truly enough or whether a second press suits your plan better.

3 HP Wooden Oil Machine Output

The 3 HP wooden oil machine is our three phase version of the 20 kg press, built for commercial work. A three phase motor handles continuous loads with little heating, so you can run long hours without hurting the oil quality. High torque and a longer motor life suit units that press every day, like oil mills, processing facilities and bulk oil producers. The wooden chamber keeps the taste and aroma, while the stainless steel hopper and tray keep the oil clean. Noise and vibration stay low and power consumption is modest, which helps when the press runs all day.

Which Phase Suits Your Supply

Check what supply your shed has before you choose a version. These points make the decision easy.

• Three phase supply available: choose the 3 HP version
• Only single phase supply: choose the 4 HP version
• Both give 20 kg an hour on the same 4 x 2 x 4.5 ft frame
• Both use an EN19 hardened shaft and a 960 rpm drive
• Ask your electrician which supply you have, then tell us

4 HP Wooden Oil Machine Uses

The single phase version suits places where power is limited. Here is where it works best.

• Small oil businesses starting with lower investment
• Farms and rural units with limited power access
• Home based units that need more than 10 kg an hour
• Shops selling wood pressed oil on a daily basis
• Space saving and easy to install
• Low power consumption

Moving Up From the 10 kg Press

If you already run our 10 kg press, the 20 kg model is the natural next step, because it doubles the hourly seed capacity. The frame grows from 3 by 1.5 by 4 feet to 4 by 2 by 4.5 feet. The 10 kg press has a 2 HP motor and this press has 3 HP or 4 HP depending on the phase. If your mill needs more than 20 kg an hour, our Jumbo 30 kg press runs on a 5 HP three phase motor. Click a model below or tell us your daily volume and we will advise.

20 kg Wooden Oil Machine Price

Anyone searching for a 20 kg wooden oil machine price should know that our figure starts at ₹1,70,000 plus GST, ex-works Coimbatore. That is the price of the press by itself. The three phase version costs a little more and we confirm the exact amount when we speak. Freight to your district and installation at your place are added on top and Perfect Engineerings writes each amount on its own line in the quote, sent within one working day. Send us your seed type, daily quantity and power supply by form or WhatsApp and our team will call you back.

What Your Quote Will Contain

A clear quote lets you compare suppliers fairly. Here is what ours lists, line by line.

• The 20 kg press in your chosen phase
• GST at the applicable rate
• Freight to your district
• Installation and first run at your place
• Filter or spare parts, only if you ask for them
• Perfect Engineerings lists each line separately
